Compression Latch 1436 Series, Square Face, Large Size Type, Fixed Grip Range

Compression Latch

Compression Latch

1436 F
1436 C

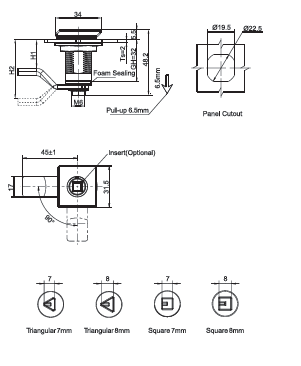

1436 C DRG
1436 F
1436 C
1436 C DRG

Compression Latch 1436 Series, Square Face, Large Size Type, Fixed Grip Range

SKU:

KEY FEATURES
  • Tool Lock Insert, Easy To Open
  • Sealed Against Water And Dust
  • Keyed Access, Anti-Theft
  • Left-Right Interchangeable, Convenient Replacement
  • Compression Locking, For Enhanced Security
MATERIAL
  • Housing,Cylinder:Zinc Die
Part Number Shaft Style Insert Type
1436-05-S10  Short Shaft  Slotted Recess
1436-013-S10  Short Shaft  Double Bit 3mm
1436-20-S10  Short Shaft  Key Operated
1436-037-S10  Short Shaft  Triangular 7mm
1436-038-S10  Short Shaft  Triangular 8mm
1436-047-S10  Short Shaft  Square 7mm
1436-048-S10  Short Shaft  Square 8mm
1436-060-S10  Short Shaft  Hexagon Male 10mm
1436-068-S10  Short Shaft  Hexagon Female 8mm
1436-0371-S10  Short Shaft  Triangular 7mm
1436-0381-S10  Short Shaft  Triangular 8mm
1436-0471-S10  Short Shaft  Square 7mm
1436-0481-S10  Short Shaft  Square 8mm
