Compression Latch

Compression Latch

Compression Latch 1439 Series, Large Size Type, Adjustable Grip Range

SKU:

KEY FEATURES

Sealed Against Water And Dust
Keyed Access, Anti-Theft
Left-Right Interchangeable, Convenient Replacement
Compression Locking, For Enhanced Security
Handle Operation, Convenient And Quick
Adjustable Grip Range, Multiple Choices

MATERIAL

Housing,Cylinder,Handle:Zinc Die

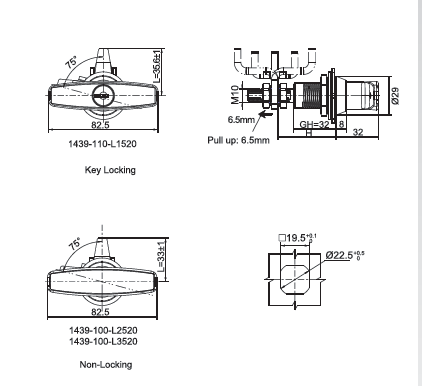

Compression Latch 1439 Series, Large Version, Adjustable Grip Range Forward: 11.4-27.2mm, Reverse: 66.3-76.2mm Product Data Sheet

Part Number	Shaft Style	Insert Type
1439-100-L1520	Long Shaft	Non-Locking
1439-110-L1520	Long Shaft	Key Locking

Compression Latch 1439 Series, Large Version, Adjustable Grip Range Forward: 25.4-41.1mm, Reverse: 52.6-68.3mm Product Data Sheet

Part Number	Shaft Style	Insert Type
1439-100-L2520	Long Shaft	Non-Locking
1439-110-L2520	Long Shaft	Key Locking

Compression Latch 1439 Series, Large Version, Adjustable Grip Range 38.9-54.6mm Product Data Sheet

Part Number	Shaft Style	Insert Type
1439-100-L3520	Long Shaft	Non-Locking
1439-110-L3520	Long Shaft	Key Locking
