Concealed Hinge 2401-115 Series

Concealed Hinge

Concealed Hinge

2401 115
2401-115

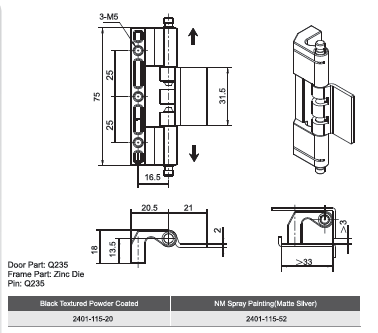

2401-115-DRAWING
2401-115B

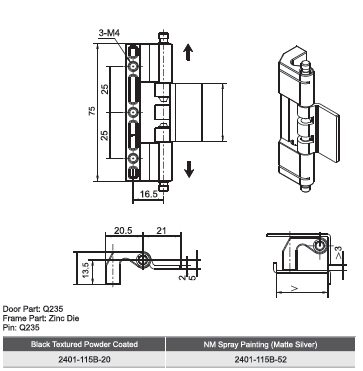

24 01-115B DRAWING
2401 115
2401-115
2401-115-DRAWING
2401-115B
24 01-115B DRAWING

Concealed Hinge 2401-115 Series

SKU: 2401-115

KEY FEATURES
  • Detachable Installation
  • Left-Right Interchangeable, Convenient Replacement
  • Easy Installation With Screws/Nuts
  • Concealed Installation
MATERIAL
  • Door Part:Q235
  • Frame Part:Zinc Die
  • Pin:Q235
Part Number Material Surface Finish
2401-115-20 Zinc Alloy Black Textured Powder Coated
2401-115-77 Zinc Alloy Sand Sprayed
