Concealed Hinge 2407-02X Series

Concealed Hinge

Concealed Hinge

2407 2
2407-02

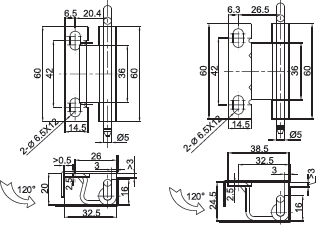

2407-02DRG
2407 2
2407-02
2407-02DRG

Concealed Hinge 2407-02X Series

SKU: 2407-02X

KEY FEATURES
  • Detachable Installation
  • Left-Right Interchangeable, Convenient Replacement
  • Easy Installation With Screws/Nuts
  • Concealed Installation
MATERIAL
  • Door Part/Frame Part:Q235/Stainless Steel 304
  • Pin:Q235/Stainless Steel 304

New wpDataTable

Part Number Material Height
2407-021-01 Mild Steel 20
2407-021-304 Stainless Steel 20
2407-022-01 Mild Steel 24.5
2407-022-304 Stainless Steel 24.5
