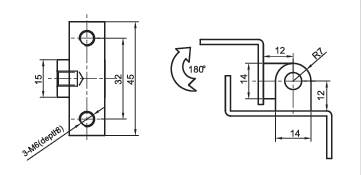

2316-A DRG
2316-B

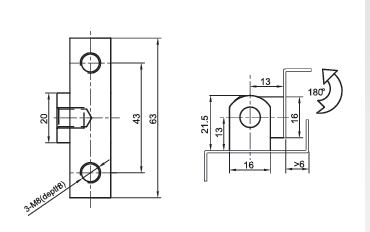

2316-B DRG
2316
2316-A
2316-A DRG
2316-B
2316-B DRG

External Hinge 2316 Series

SKU: 2316

KEY FEATURES
  • Easy Installation With Screws/Nuts
  • Left-Right Interchangeable, Convenient Replacement
MATERIAL
  • Door Part/Frame Part:Zinc Die
  • Pin:Q235
Part Number Length(L) Surface Finish
2316-45-10 45 Black Matte Powder Coated
2316-45-30 45 Bright Chrome Plated
2316-63-10 63 Black Matte Powder Coated
2316-63-30 63 Bright Chrome Plated
