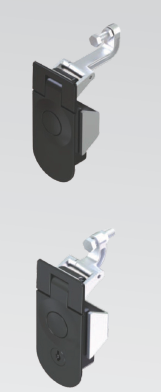

Lever Latch 1245 Series

Latch

Latch

1245
1245
1245 drg
1245
1245
1245 drg

Lever Latch 1245 Series

SKU:

KEY FEATURES
  • Handle Operation, Convenient And Quick
  • Keyed Access, Anti-Theft
  • Various Keys On Request
  • Button Pops Open For Easy Operation
  • Self-Ejection Handle, Easy To Operate
  • Push To Lock Without Key
  • Lever-Type Lock, For Enhanced Security
MATERIAL
  • Housing,Handle:Zinc Die

Lever Latch 1245 Series Lever To Housing Distance 1-14 Mm Product Data Sheet

Part Number Panel Ts Insert Type
1245-114-201 1-11 Non-locking
1245-114-202 11-21 Non-locking
1245-214-201 1-11 CH751 Key Locking, With Shutter
1245-214-202 11-21 CH751 Key Locking, With Shutter
1245-314-201 1-11 CH751 Cylinder
1245-314-202 11-21 CH751 Cylinder
1245-414-201 1-11 Tooling Secure
1245-414-202 11-21 Tooling Secure
1245-914-201 1-11 Hexagon Female 4mm
1245-914-202 11-21 Hexagon Female 4mm

Lever Latch 1245 Series Lever To Housing Distance 14-29 Mm Product Data Sheet

Part Number Panel Ts Insert Type
1245-129-201 1-11 Non-locking
1245-129-202 11-21 Non-locking
1245-129-203 21-31 Non-locking
1245-229-201 1-11 CH751 Key Locking, With Shutter
1245-229-202 11-21 CH751 Key Locking, With Shutter
1245-229-203 21-31 CH751 Key Locking, With Shutter
1245-329-201 1-11 CH751 Cylinder
1245-329-202 11-21 CH751 Cylinder
1245-329-203 21-31 CH751 Cylinder
1245-429-201 1-11 Tooling Secure
1245-429-202 11-21 Tooling Secure
1245-429-203 21-31 Tooling Secure
1245-929-201 1-11 Hexagon Female 4mm
1245-929-202 11-21 Hexagon Female 4mm
1245-929-203 21-31 Hexagon Female 4mm

Lever Latch 1245 Series Lever To Housing Distance 29-45 Mm Product Data Sheet

Part Number Panel Ts Insert type
1245-145-201 1-11 Non Locking
1245-145-202 11-21 Non Locking
1245-145-203 21-31 Non Locking
1245-145-204 31-41 Non Locking
1245-245-201 1-11 CH751 Key Locking, With Shutter
1245-245-202 11-21 CH751 Key Locking, With Shutter
1245-245-203 21-31 CH751 Key Locking, With Shutter
1245-245-204 31-41 CH751 Key Locking, With Shutter
1245-345-201 1-11 CH751 Cylinder
1245-345-202 11-21 CH751 Cylinder
1245-345-203 21-31 CH751 Cylinder
1245-345-204 31-41 CH751 Cylinder
1245-445-201 1-11 Tooling Secure
1245-445-202 11-21 Tooling Secure
1245-445-203 21-31 Tooling Secure
1245-445-204 31-41 Tooling Secure
1245-945-201 1-11 Hexagon Female 4mm
1245-945-202 11-21 Hexagon Female 4mm
1245-945-203 21-31 Hexagon Female 4mm
1245-945-204 31-41 Hexagon Female 4mm

Lever Latch 1245 Series Lever To Housing Distance 45-57 Mm Product Data Sheet

Part Number Panel Ts Insert Type
1245-157-201 1-11 Non Locking
1245-157-202 11-21 Non Locking
1245-157-203 21-31 Non Locking
1245-157-204 31-41 Non Locking
1245-257-201 1-11 CH751 Key Locking, With Shutter
1245-257-202 11-21 CH751 Key Locking, With Shutter
1245-257-203 21-31 CH751 Key Locking, With Shutter
1245-257-204 31-41 CH751 Key Locking, With Shutter
1245-357-201 1-11 CH751 CYlinder
1245-357-202 11-21 CH751 CYlinder
1245-357-203 21-31 CH751 CYlinder
1245-357-204 31-41 CH751 CYlinder
1245-457-201 1-11 Tooling Secure
1245-457-202 11-21 Tooling Secure
1245-457-203 21-31 Tooling Secure
1245-457-204 31-41 Tooling Secure
1245-957-201 1-11 Hexagon Female 4mm
1245-957-202 11-21 Hexagon Female 4mm
1245-957-203 21-31 Hexagon Female 4mm
1245-957-204 31-41 Hexagon Female 4mm
