Over-Centre Draw Latch 1271 Series

SKU:

KEY FEATURES

Various Keys On Request
Sturdy And Secure, Anti-Prying
Compression Locking, For Enhanced Security

MATERIAL

Housing,Handle:Zinc Die

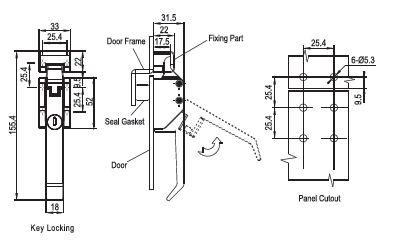

Over-Center Draw Latch 1271 Series With Screw Hole M5X0.8 Product Data Sheet

Part Number	Insert Type	Material	Surface Finish
1271-00-00	Non-Locking	Zinc Alloy	Black Matte Powder Coated
1271-00-30	Non-Locking	Zinc Alloy	Bright Chrome Plated
1271-00-316	Non-Locking	SUS 316	/
1271-10-00	CH751 Cylinder	Zinc Alloy	Black Matte Powder Coated
1271-10-30	CH751 Cylinder	Zinc Alloy	Bright Chrome Plated
1271-10-316	CH751 Cylinder	SUS 316	/

Over-Center Draw Latch 1271 Series With Screw Hole 10-32UNC Product Data Sheet

Part Number	Insert Type	Material	Surface Finish
1271-100-00	Non-Locking	Zinc Alloy	Black Matte Powder Coated
1271-100-30	Non-Locking	Zinc Alloy	Bright Chrome Plated
1271-100-316	Non-Locking	SUS 316	/
1271-110-00	CH751 Cylinder	Zinc Alloy	Black Matte Powder Coated
1271-110-30	CH751 Cylinder	Zinc Alloy	Bright Chrome Plated
1271-110-316	CH751 Cylinder	SUS 316	/
