Paddle Latch 1704 Series

SKU:

KEY FEATURES

Padlockable On Request
With Slam Lock Feature, Auto-Lockable
Keyed Access, Anti-Theft
Adjustable Grip Range, Multiple Choices

MATERIAL

Handle:Q235/Stainless Steel 304
Housing,Cylinder:Zinc Die/Stainless Steel 304

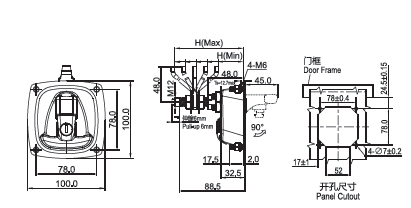

Paddle Latch 1704 Series With Cam ,Grip Range Forward: 28-43mm, Reverse: 88-104mm Product Data Sheet

Part Number	Insert Type
1704-100-367	Non-Locking
1704-110-367	Key Locking

Paddle Latch 1704 Series With Cam ,Grip Range Forward: 43-58mm, Reverse: 73-88mm Product Data Sheet

Part Number	Insert Type
1704-100-267	Non-Locking
1704-110-267	Key Locking

Paddle Latch 1704 Series With Straight Cam, Grip Range 58-73mm Product Data Sheet

Part Number	Insert Type
1704-100-167	Non-Locking
1704-110-167	Key Locking
