Fastners
SKU:

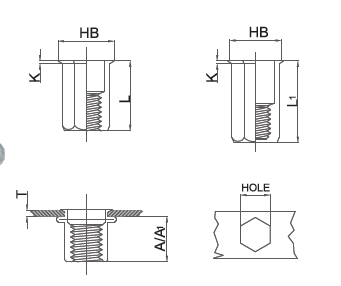

| Thread | Grip Range (E) | A | Hole (+0.1) | D (+0.07 -0.1) | B (±0.3) | K(±0.15) | L(±0.3) | Close End | |
| A1 | L1 | ||||||||
| M3 | 0.5 - 2.0 | 5.2 | 5.0 | 4.9 | 5.8 | 0.5 | 8.5 | 11.5 | |
| M4 | 0.5 - 2.5 | 7.3 | 6.0 | 5.9 | 7.1 | 0.5 | 11.0 | 12.3 | 16.0 |
| 2.5 - 5.0 | 7.15 | 13.5 | |||||||
| M5 | 0.5 - 3.0 | 9.3 | 7.0 | 6.9 | 8.1 | 0.5 | 14.5 | 14.0 | 20.0 |
| 3.0 - 5.0 | 16.0 | ||||||||
| M6 | 1.0 - 3.0 | 10.0 | 9.0 | 8.9 | 10.1 | 0.6 | 16.0 | 14.8 | 20.5 |
| 3.5 - 6.0 | 18.0 | 24.0 | |||||||
| M8 | 1.0 - 4.0 | 10.5 | 11.0 | 10.9 | 12.1 | 0.65 | 18.0 | 15.5 | 23.0 |
| 4.0 - 6.0 | 20.0 | ||||||||
| M10 | 1.0 - 3.5 | 11.5 | 13.0 | 12.9 | 14.5 | 0.75 | 19.0 | 20.0 | 28.5 |
| 3.5 - 6.0 | 14.0 | 23.5 | |||||||
| Thread | Grip Range (E) | A | Hole (+0.1) | D (+0.07 -0.1) | B (±0.3) | K(±0.15) | L(±0.3) |
| M4 | 0.5 - 3.0 | 7.8 | 6.0 | 5.9 | 7.0 | 0.6 | 12.0 |
| M5 | 0.5 - 3.0 | 8.8 | 7.0 | 6.9 | 8.0 | 0.6 | 13.5 |
| M6 | 1.0 - 3.0 | 10.0 | 9.0 | 8.9 | 10.0 | 0.7 | 16.0 |
| M8 | 1.0 - 3.0 | 11.8 | 11.0 | 10.9 | 12.0 | 0.7 | 18.0 |
| M10 | 1.0 - 4.0 | 14.5 | 13.0 | 12.9 | 14.5 | 0.8 | 22.0 |
| M12 | 1.5 - 5.0 | 15.8 | 16.0 | 15.9 | 18.0 | 1.0 | 25.0 |
