Fastners
SKU:

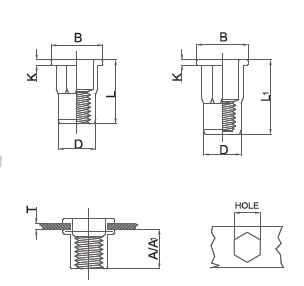

| Thread | Grip Range (E) | A | Hole (+0.1) | D (+0.07 -0.1) | B (±0.3) | K(±0.15) | L(±0.3) |
| M4 | 0.5 - 2.0 | 6.5 | 6.4 | 6.25 | 7.25 | 0.5 | 10.5 |
| M5 | 0.5 - 2.5 | 8.0 | 7.2 | 7.2 | 8.1 | 0.5 | 12.0 |
| M6 | 1.0 - 3.0 | 9.2 | 9.6 | 9.6 | 10.5 | 0.6 | 15.0 |
| M8 | 1.0 - 3.5 | 11.0 | 10.6 | 10.6 | 11.5 | 0.7 | 16.5 |
