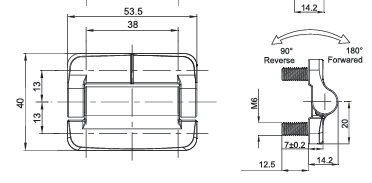

2 127 B DRG
2127
2127 A
2127 A DRG
2127 B
2 127 B DRG

Screw-On Torque Hinge 2127 Series(53.5 x 40)

SKU:

KEY FEATURES
  • Easy Installation With Screws/Nuts
  • Free Hovering Within The Range Of Opening Angles
  • Optional Symmetric And Asymmetric Torque
MATERIAL
  • Door Part/Frame Part:Zinc Die
  • Pin:Mild Steel
Part Number Symmetric Torque (N.m.) Material Surface Finish Fixing Method
21127-5180-20 1.8 Zinc Alloy Black Textured Powder Coated CounterSunk Screw M6
2127-5181-20 1.8 Zinc Alloy Black Textured Powder Coated Mounting Studs M6
2127-5230-20 2.3 Zinc Alloy Black Textured Powder Coated CounterSunk Screw M6
2127-5231-20 2.3 Zinc Alloy Black Textured Powder Coated Mounting Studs M6
2127-5340-20 3.4 Zinc Alloy Black Textured Powder Coated CounterSunk Screw M6
2127-5341-20 3.4 Zinc Alloy Black Textured Powder Coated Mounting Studs M6
