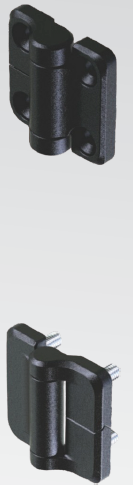

Screw-On Torque Hinge 2136-6 Series(60 x 60)

Hinge

Hinge

2136 6
2136-6 A

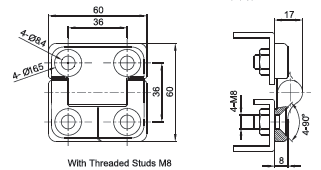

2136-6-A DRG
2136-6-B
2136-6-B DRG
2136 6
2136-6 A
2136-6-A DRG
2136-6-B
2136-6-B DRG

Screw-On Torque Hinge 2136-6 Series(60 x 60)

SKU:

KEY FEATURES
  • Easy Installation With Screws/Nuts
  • Free Hovering Within The Range Of Opening Angles
  • Optional Symmetric And Asymmetric Torque
MATERIAL
  • Door Part/Frame Part:Zinc Die
  • Pin:Mild Steel

Symmetric Torque A Product Data Sheet

Part Number Symmetric Torque (N.m.) Fixing Method Material Surface Finish
2136-6000-20 Free Swinging Countersunk Screew M8 Zinc Alloy Black Textured Powder Coated
2136-6013-20 1.36 Countersunk Screew M8 Zinc Alloy Black Textured Powder Coated
2136-6022-20 2.26 Countersunk Screew M8 Zinc Alloy Black Textured Powder Coated
2136-6040-20 4.07 Countersunk Screew M8 Zinc Alloy Black Textured Powder Coated
2136-6100-20 Free Swinging Mounting Studs M8 Zinc Alloy Black Textured Powder Coated
2136-6113-20 1.36 Mounting Studs M8 Zinc Alloy Black Textured Powder Coated
2136-6122-20 2.26 Mounting Studs M8 Zinc Alloy Black Textured Powder Coated
2136-6140-20 4.07 Mounting Studs M8 Zinc Alloy Black Textured Powder Coated

Asymmetric Torque B Product Data Sheet

Part Number Forward Torque (N.m.) Reverse Torque (N.m.) Fixing Method Material Surface Finish
2136-6014R-20 1.4 2.3 Countersunk Screw M8 Zinc Alloy Black Textured Powder coated
2136-6019R-20 1.9 3.2 Countersunk Screw M8 Zinc Alloy Black Textured Powder coated
2136-6023F-20 2.3 1.4 Countersunk Screw M8 Zinc Alloy Black Textured Powder coated
2136-6024R-20 2.4 4.1 Countersunk Screw M8 Zinc Alloy Black Textured Powder coated
2136-6030R-20 3 5 Countersunk Screw M8 Zinc Alloy Black Textured Powder coated
2136-6032F-20 3.2 1.9 Countersunk Screw M8 Zinc Alloy Black Textured Powder coated
2136-6041F-20 4.1 2.4 Countersunk Screw M8 Zinc Alloy Black Textured Powder coated
2136-6050F-20 5 3 Countersunk Screw M8 Zinc Alloy Black Textured Powder coated
2136-6114R-20 1.4 2.3 Mounting Stud M8 Zinc Alloy Black Textured Powder coated
2136-6119R-20 1.9 3.2 Mounting Stud M8 Zinc Alloy Black Textured Powder coated
2136-6123F-20 2.3 1.4 Mounting Stud M8 Zinc Alloy Black Textured Powder coated
2136-6124R-20 2.4 4.1 Mounting Stud M8 Zinc Alloy Black Textured Powder coated
2136-6130R-20 3 5 Mounting Stud M8 Zinc Alloy Black Textured Powder coated
2136-6132F-20 3.2 1.9 Mounting Stud M8 Zinc Alloy Black Textured Powder coated
2136-6141F-20 4.1 2.4 Mounting Stud M8 Zinc Alloy Black Textured Powder coated
2136-6150F-20 5 3 Mounting Stud M8 Zinc Alloy Black Textured Powder coated
