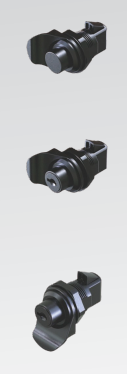

Slam Latch 1431 Series

SKU:

KEY FEATURES

Quick Installation
With Slam Lock Feature, Auto-Lockable
Button Pops Open For Easy Operation
Left-Right Interchangeable, Convenient Replacement

MATERIAL

Housing,Cylinder:PA6

Part Number	Insert Type	With/Without Finger Pull Tab
1431-00	Non-Locking	Pull Tab In-Line With Latching Cam
1431-00-NP	Non-Locking	Without Pull Tap
1431-00-V	Non-Locking	Pull Tab Perpendicular To Latching Cam
1431-10	Key Locking	Pull Tab In-Line With Latching Cam
1431-10-NP	Key Locking	Without Pull Tap
1431-10-V	Key Locking	Pull Tab Perpendicular To Latching Cam
1431-00	Non-Locking	Pull Tab In-Line With Latching Cam
1431-00-NP	Non-Locking	Without Pull Tap
1431-00-V	Non-Locking	Pull Tab Perpendicular To Latching Cam
1431-10	Key Locking	Pull Tab In-Line With Latching Cam
1431-10-NP	Key Locking	Without Pull Tap
1431-10-V	Key Locking	Pull Tab Perpendicular To Latching Cam
