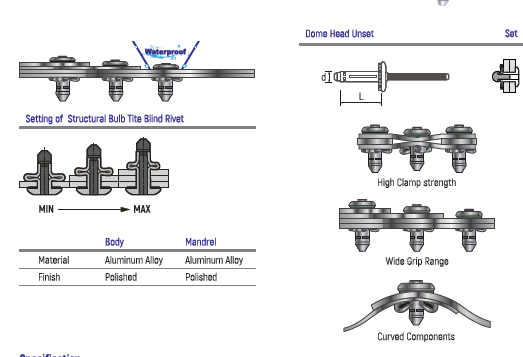

Structural Bulb Tite Blind Rivet

SKU:

Advantage

  • Resists pull-out and cracking the work piece
  • Provides strong, vibration resistant joints
  • Split tail formation provides a vary large blind side bearing area against the rear sheet
  • One fastener can often be used to replace several standard grip fasteners
  • Ideal for large construction applications

Material

  • Body : Aluminum
  • Mandrel : Aluminum
Dia(d) Length(L) Grip Range Shear Force Tensile Force
(mm) (Inch) (mm) (Inch) N lbs N lbs
7.7(5/16”) ∮7.8~8.2(.31~.32) 27.7 1-3/32 1.1 - 9.5 0.04 - 0.37 6650 1494 4850 1090
34.0 1-5/16 6.35 - 15.87 0.25 - 0.62
