Compression Latch

Compression Latch

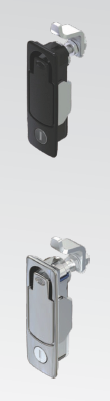

Compression Latch 1247 Series

SKU:

KEY FEATURES

Sealed Against Water And Dust
Keyed Access, Anti-Theft
Various Keys On Request
Handle Operation, Convenient And Quick
Push To Lock Without Key
Button Pops Open For Easy Operation
Self-Ejection Handle, Easy To Operate
Compression Locking, For Enhanced Security

MATERIAL

Housing,Handle:Zinc Die

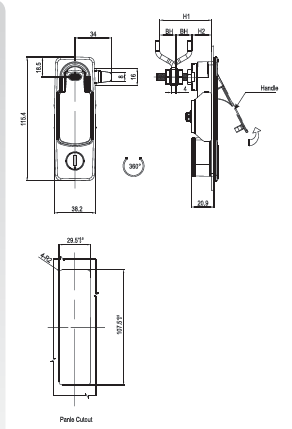

Compression Latch 1247 Series, Cam Pawl Forward 6-16 Mm，Cam Pawl Reversed 56-66mm Product Data Sheet

Part Number	Insert Type	Surface Finish
1247-10-110	1247 Cylinder	Black Matte Powder Coated
1247-10-130	1247 Cylinder	Bright Chrome Plated

Compression Latch 1247 Series, Cam Pawl Forward 16-26 Mm，Cam Pawl Reversed 46-56mm Product Data Sheet

Part Number	Insert Type	Surface Finish
1247-10-210	1247 Cylinder	Black Matte Powder Coated
1247-10-230	1247 Cylinder	Bright Chrome Plated

Compression Latch 1247 Series, Cam Pawl Forward 26-36 Mm，Cam Pawl Reversed 36-46mm Product Data Sheet

Part Number	Insert Type	Surface Finish
1247-10-310	1247 Cylinder	Black Matte Powder Coated
1247-10-330	1247 Cylinder	Bright Chrome Plated
