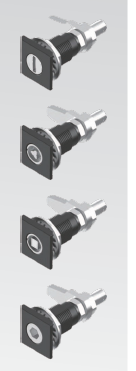

Compression Latch 1436 Series, Square Face, Large Type, Adjustable Grip Range

SKU:

KEY FEATURES

Tool Lock Insert, Easy To Open
Sealed Against Water And Dust
Keyed Access, Anti-Theft
Left-Right Interchangeable, Convenient Replacement
Compression Locking, For Enhanced Security
Adjustable Grip Range, Multiple Choices

MATERIAL

Housing,Cylinder:Zinc Die

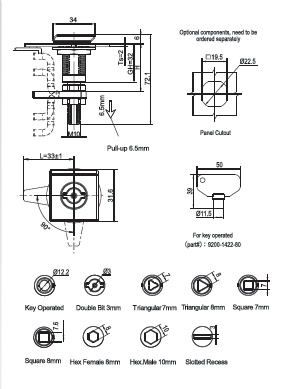

Compression Latch 1436 Series, Square Insert,Large Version,Adjustable Grip Range Forward: 11.4-27.2mm, Reverse: 66.3-76.2mm Product Data Sheet

Part Number	Shaft Style	Insert Type
1436-05-L1510	Long Shaft	Slotted Recess
1436-013-L1510	Long Shaft	Double Bit 3mm
1436-20-L1510	Long Shaft	Key Operated
1436-037-L1510	Long Shaft	Triangular 7mm
1436-038-L1510	Long Shaft	Triangular 8mm
1436-047-L1510	Long Shaft	Square 7mm
1436-048-L1510	Long Shaft	Square 8mm
1436-060-L1510	Long Shaft	Hexagon Male 10mm
1436-068-L1510	Long Shaft	Hexagon Female 8mm

Compression Latch 1436 Series, Square Insert,Large Version,Adjustable Grip Range Forward:25.4-41.1mm, Reverse: 52.6-68.3mm Product Data Sheet

Part Number	Shaft Style	Insert Type
1436-05-L2510	Long Shaft	Slotted Recess
1436-013-L2510	Long Shaft	Double Bit 3mm
1436-20-L2510	Long Shaft	Key Operated
1436-037-L2510	Long Shaft	Triangular 7mm
1436-038-L2510	Long Shaft	Triangular 8mm
1436-047-L2510	Long Shaft	Square 7mm
1436-048-L2510	Long Shaft	Square 8mm
1436-060-L2510	Long Shaft	Hexagon Male 10mm
1436-068-L2510	Long Shaft	Hexagon Female 8mm

Compression Latch 1436 Series, Square Insert,Large Version,Adjustable Grip Range 38.9-54.6mm Product Data Sheet

Part Number	Shaft Style	Insert Type
1436-05-L3510	Long Shaft	Slotted Recess
1436-013-L3510	Long Shaft	Double Bit 3mm
1436-20-L3510	Long Shaft	Key Operated
1436-037-L3510	Long Shaft	Triangular 7mm
1436-038-L3510	Long Shaft	Triangular 8mm
1436-047-L3510	Long Shaft	Square 7mm
1436-048-L3510	Long Shaft	Square 8mm
1436-060-L3510	Long Shaft	Hexagon Male 10mm
1436-068-L3510	Long Shaft	Hexagon Male 10mm
