Lift-Off Hinge 2207 Series(Large)

Hinge

Hinge

2207 LARGE
2207 large

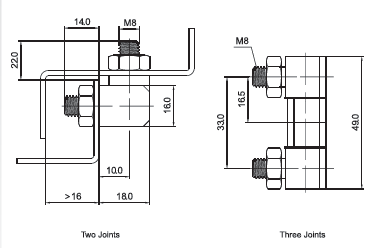

2207 large drg
2207 LARGE
2207 large
2207 large drg

Lift-Off Hinge 2207 Series(Large)

SKU:

KEY FEATURES
  • Easy Installation With Screws/Nuts
  • Detachable Installation
MATERIAL
  • Door Part/Frame Part:Q235/Stainless Steel 304
  • Pin:Q235/Stainless Steel 304
Data Sheet Version Length(L) Material
2207-325-01 Two Joint 32.5 Q235
2207-325-304 Two Joint 32.5 Stainless Steel
2207-490-01 Three Joint 49 Q235
2207-490-01 Three Joint 49 Stainless Steel
