Quarter Turn Lock 1407 Series

Lock

Lock

1407
1407

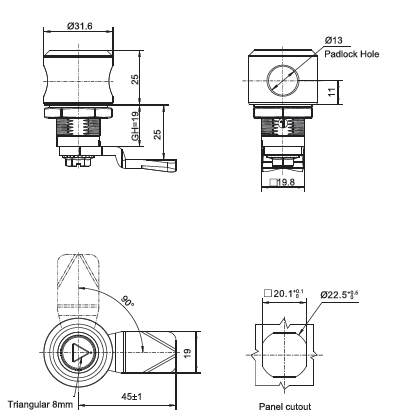

1407 DRG
1407
1407
1407 DRG

Quarter Turn Lock 1407 Series

SKU:

KEY FEATURES
  • Padlockable On Request
  • Sealed Against Water And Dust
  • Quick Installation
  • Tool Lock Insert, Easy To Open
  • Various Materials On Request
MATERIAL
  • Housing,Cylinder:Zinc Die/Stainless Steel 304

Quarter Turn Lock 1407 Series Housing With 2 Padlock Holes Product Data Sheet

Part Number Insert Type Housing Height (GH) Material Surface Finish
1407-180132H-20  Double Bit 3mm  18  Zinc Die  Black Textured Powder Coated
1407-180142H-20  Double Bit 4mm  18  Zinc Die  Black Textured Powder Coated
1407-180152H-20  Double Bit 5mm  18  Zinc Die  Black Textured Powder Coated
1407-180242H-20  Slot 2X4mm  18  Zinc Die  Black Textured Powder Coated
1407-180372H-20  Triangular 7mm  18  Zinc Die  Black Textured Powder Coated
1407-180382H-20  Triangular 8mm  18  Zinc Die  Black Textured Powder Coated
1407-180472H-20  Square 7mm  18  Zinc Die  Black Textured Powder Coated
1407-180482H-20  Square 8mm  18  Zinc Die  Black Textured Powder Coated
1407-220132H-20  Double Bit 3mm  22  Zinc Die  Black Textured Powder Coated
1407-220132H-304  Double Bit 3mm  22  Stainless Steel 304  /
1407-220142H-20  Double Bit 4mm  22  Zinc Die  Black Textured Powder Coated
1407-220142H-304  Double Bit 4mm  22  Stainless Steel 304  /
1407-220152H-20  Double Bit 5mm  22  Zinc Die  Black Textured Powder Coated
1407-220152H-304  Double Bit 5mm  22  Stainless Steel 304  /
1407-220242H-20  Slot 2X4mm  22  Zinc Die  Black Textured Powder Coated
1407-220242H-304  Slot 2X4mm  22  Stainless Steel 304  /
1407-220372H-20  Triangular 7mm  22  Zinc Die  Black Textured Powder Coated
1407-220372H-304  Triangular 7mm  22  Stainless Steel 304  /
1407-220382H-20  Triangular 8mm  22  Zinc Die  Black Textured Powder Coated
1407-220382H-304  Triangular 8mm  22  Stainless Steel 304  /
1407-220472H-20  Square 7mm  22  Zinc Die  Black Textured Powder Coated
1407-220472H-304  Square 7mm  22  Stainless Steel 304  /
1407-220482H-20  Square 8mm  22  Zinc Die  Black Textured Powder Coated
1407-220482H-304  Square 8mm  22  Stainless Steel 304  /

Quarter Turn Lock 1407 Series Housing With 4 Padlock Holes Product Data Sheet

Part Number Insert Type Housing Height (GH) Material Surface Finish
1407-180134H-20  Double Bit 3mm  18  Zinc Die  Black Textured Powder Coated
1407-180144H-20  Double Bit 4mm  18  Zinc Die  Black Textured Powder Coated
1407-180154H-20  Double Bit 5mm  18  Zinc Die  Black Textured Powder Coated
1407-180244H-20  Slot 2X4mm  18  Zinc Die  Black Textured Powder Coated
1407-180374H-20  Triangular 7mm  18  Zinc Die  Black Textured Powder Coated
1407-180384H-20  Triangular 8mm  18  Zinc Die  Black Textured Powder Coated
1407-180474H-20  Square 7mm  18  Zinc Die  Black Textured Powder Coated
1407-180484H-20  Square 8mm  18  Zinc Die  Black Textured Powder Coated
1407-220134H-20  Double Bit 3mm  22  Zinc Die  Black Textured Powder Coated
1407-220134H-304  Double Bit 3mm  22  Stainless Steel 304  /
1407-220144H-20  Double Bit 4mm  22  Zinc Die  Black Textured Powder Coated
1407-220144H-304  Double Bit 4mm  22  Stainless Steel 304  /
1407-220154H-20  Double Bit 5mm  22  Zinc Die  Black Textured Powder Coated
1407-220154H-304  Double Bit 5mm  22  Stainless Steel 304  /
1407-220244H-20  Slot 2X4mm  22  Zinc Die  Black Textured Powder Coated
1407-220244H-304  Slot 2X4mm  22  Stainless Steel 304  /
1407-220374H-20  Triangular 7mm  22  Zinc Die  Black Textured Powder Coated
1407-220374H-304  Triangular 7mm  22  Stainless Steel 304  /
1407-220384H-20  Triangular 8mm  22  Zinc Die  Black Textured Powder Coated
1407-220384H-304  Triangular 8mm  22  Stainless Steel 304  /
1407-220474H-20  Square 7mm  22  Zinc Die  Black Textured Powder Coated
1407-220474H-304  Square 7mm  22  Stainless Steel 304  /
1407-220484H-20  Square 8mm  22  Zinc Die  Black Textured Powder Coated
1407-220484H-304  Square 8mm  22  Stainless Steel 304  /
