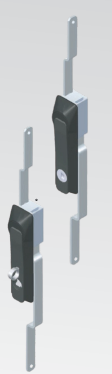

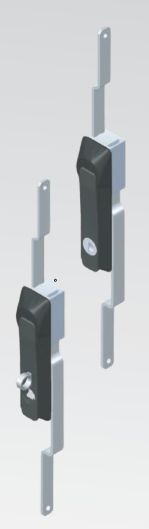

Rod Control Swinghandle 1103 Rod Control Type Series

SKU:

KEY FEATURES

Handle Operation, Convenient And Quick
Keyed Access, Anti-Theft
Left-Right Interchangeable, Convenient Replacement
Various Keys On Request
Padlockable On Request
Multiple-Points Locking

MATERIAL

Housing,Handle:Zinc Die
Rod Control:Zinc Die
Padlock Hasp:Stainless Steel 316

Rod Control Swinghandle 1103 Two Point Rod Control Series Product Data Sheet

Part Number	Insert Type	Surface Finish	With/Without Padlock Version
1103-2001-10-NP	YK333 Cylinder	Black Matte Powder Coated	Without Padlock
1103-2001-10-P	YK333 Cylinder	Black Matte Powder Coated	With Padlock
1103-2001-50-NP	YK333 Cylinder	Black E-Coated	Without Padlock
1103-2001-50-P	YK333 Cylinder	Black E-Coated	With Padlock
1103-2003-10-NP	Triangular 8mm	Black Matte Powder Coated	Without Padlock
1103-2003-10-P	Triangular 8mm	Black Matte Powder Coated	With Padlock
1103-2003-50-NP	Triangular 8mm	Black E-Coated	Without Padlock
1103-2003-50-P	Triangular 8mm	Black E-Coated	With Padlock

Rod Control Swinghandle 1103 Three Point Rod Control Series Product Data Sheet

Part Number	Insert Type	Surface Finish	With/Without Padlock Version
1103-3001-10-NP	YK333 Cylinder	Black Matte Powder Coated	Without Padlock
1103-3001-10-P	YK333 Cylinder	Black Matte Powder Coated	With Padlock
1103-3001-50-NP	YK333 Cylinder	Black E-Coated	Without Padlock
1103-3001-50-P	YK333 Cylinder	Black E-Coated	With Padlock
1103-3003-10-NP	Triangular 8mm	Black Matte Powder Coated	Without Padlock
1103-3003-10-P	Triangular 8mm	Black Matte Powder Coated	With Padlock
1103-3003-50-NP	Triangular 8mm	Black E-Coated	Without Padlock
1103-3003-50-P	Triangular 8mm	Black E-Coated	With Padlock
