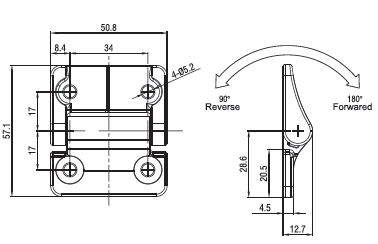

2118 LARGE DRG1
2118 LARGE-2

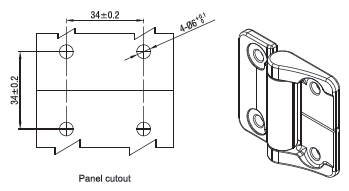

2 118 LARGE 2 DRG
2118 L
2118 LARGE
2118 LARGE DRG1
2118 LARGE-2
2 118 LARGE 2 DRG

Screw-On Torque Hinge 2118 Series(Large)

SKU:

KEY FEATURES
  • Various Materials On Request
  • Easy Installation With Screws/Nuts
  • Free Hovering Within The Range Of Opening Angles
  • Optional Symmetric And Asymmetric Torque
MATERIAL
  • Door Part/Frame Part:Zinc Die
  • Pin:Mild Steel

Symmetrical Toque A Product Data Sheet

Part Number Symmetric Torque(N.m.) Material Surface Finish
2118-100-11 Free Swinging Zinc Alloy Natural
2118-100-20 Free Swinging Zinc Alloy Black Textured Powder Coated
2118-118-11 1.8 Zinc Alloy Natural
2118-118-20 1.8 Zinc Alloy Black Textured Powder Coated
2118-123-11 2.3 Zinc Alloy Natural
2118-123-20 2.3 Zinc Alloy Black Textured Powder Coated
2118-134-11 3.4 Zinc Alloy Natural
2118-134-20 3.4 Zinc Alloy Black Textured Powder Coated

Asymmetric Torque B Product Data Sheet

Part Number Forward Torque (N.m.) Reverse Torque (N.m.) Material Surface Finish
2118-114R-11 1.4 2.3 Zinc Alloy Natural
2118-114R-20 1.4 2.3 Zinc Alloy Black Textured Powder Coated
2118-120R-11 2 3.4 Zinc Alloy Natural
2118-120R-20 2 3.4 Zinc Alloy Black Textured Powder Coated
2118-123F-11 2.3 1.4 Zinc Alloy Natural
2118-123F-20 2.3 1.4 Zinc Alloy Black Textured Powder Coated
2118-127R-11 2.7 4.5 Zinc Alloy Natural
2118-127R-20 2.7 4.5 Zinc Alloy Black Textured Powder Coated
2118-134F-11 3.4 2 Zinc Alloy Natural
2118-134F-20 3.4 2 Zinc Alloy Black Textured Powder Coated
2118-145F-11 4.5 2.7 Zinc Alloy Natural
2118-145F-11 4.5 2.7 Zinc Alloy Black Textured Powder Coated
