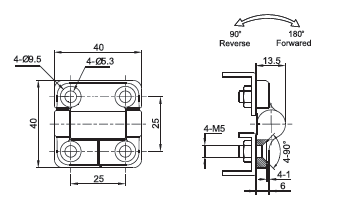

2136-A DRG
2136-B
2136-B DRG
2136 40 40
2136-4-A
2136-A DRG
2136-B
2136-B DRG

Screw-On Torque Hinge 2136-4 Series(40 x 40)

SKU:

KEY FEATURES
  • Easy Installation With Screws/Nuts
  • Free Hovering Within The Range Of Opening Angles
  • Optional Symmetric And Asymmetric Torque
MATERIAL
  • Pin:Stainless Steel 304
  • Door Part/Frame Part:Zinc Die
Part Number Symmetric Torque (N.m.) Fixing Method Material Surface Finish
2136-4000-20 Free Swinging Countersunk Screw M5 Zinc Alloy Black Textured Powder Coated
2136-4009-20 0.9 Countersunk Screw M5 Zinc Alloy Black Textured Powder Coated
2136-4014-20 1.4 Countersunk Screw M5 Zinc Alloy Black Textured Powder Coated
2136-4018-20 1.8 Countersunk Screw M5 Zinc Alloy Black Textured Powder Coated
2136-4023-20 2.3 Countersunk Screw M5 Zinc Alloy Black Textured Powder Coated
2136-4100-20 Free Swinging Mounting Studs M5 Zinc Alloy Black Textured Powder Coated
2136-4109-20 0.9 Mounting Studs M5 Zinc Alloy Black Textured Powder Coated
2136-4114-20 1.4 Mounting Studs M5 Zinc Alloy Black Textured Powder Coated
2136-4118-20 1.8 Mounting Studs M5 Zinc Alloy Black Textured Powder Coated
2136-4123-20 2.3 Mounting Studs M5 Zinc Alloy Black Textured Powder Coated
