SUS Compression Latch 1427 Series, Large Size Type, Fixed Grip Range

Compression Latch

Compression Latch

14 27 L F
1427 A

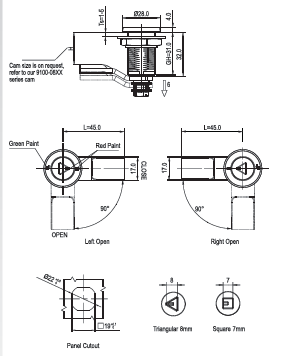

1427 DRG
1427 B
14 27 L F
1427 A
1427 DRG
1427 B

SUS Compression Latch 1427 Series, Large Size Type, Fixed Grip Range

SKU:

KEY FEATURES
  • Sealed Against Water And Dust
  • Left-Right Interchangeable, Convenient Replacement
  • Compression Locking, For Enhanced Security
  • Tool Lock Insert, Easy To Open
MATERIAL
  • Housing,Cylinder:Stainless Steel 316

New wpDataTable

Part Number Material Insert Type Opening Direction
1427-038-316L  SUS 316  Triangular 8mm  Left Opening
1427-038-316R  SUS 316  Triangular 8mm  Right Opening
1427-047-316L  SUS 316  Square 7mm  Left Opening
1427-047-316R  SUS 316  Square 7mm  Right Opening
