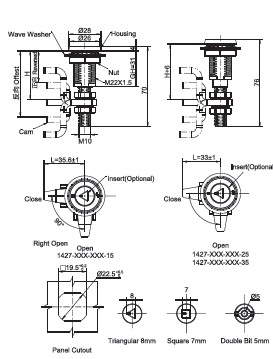

1427 B DRG
14 27 L ADJ
1427 B
1427 B 2
1427 B 3
1427 B 4
1427 B DRG

SUS Compression Latch 1427 Series, Large Type, Adjustable Grip Range

SKU:

KEY FEATURES
  • Tool Lock Insert, Easy To Open
  • Sealed Against Water And Dust
  • Left-Right Interchangeable, Convenient Replacement
  • Compression Locking, For Enhanced Security
  • Adjustable Grip Range, Multiple Choices
MATERIAL
  • Housing,Cylinder:Stainless Steel 316

SUS Compression Latch 1427 Series, Large Version,Adjustable Grip Range Forward: 11.4-27.2mm, Reverse: 66.3-76.2mm Product Data Sheet

Part Number Head Style Opening Direction
1427-015L-316L-15  Double Bit 5mm  Left Opening
1427-015L-316R-15  Double Bit 5mm  Right Opening
1427-038L-316L-15  Triangular 8mm  Left Opening
1427-038L-316R-15  Triangular 8mm  Right Opening
1427-047L-316L-15  Square 7mm  Left Opening
1427-047L-316R-15  Square 7mm  Right Opening

SUS Compression Latch 1427 Series, Large Version,Adjustable Grip Range Forward:25.4-41.1mm, Reverse: 52.6-68.3mm Product Data Sheet

Part Number Head Style Opening Direction
1427-015L-316L-25  Double Bit 5mm  Left Opening
1427-015L-316R-25  Double Bit 5mm  Right Opening
1427-038L-316L-25  Triangular 8mm  Left Opening
1427-038L-316R-25  Triangular 8mm  Right Opening
1427-047L-316L-25  Square 7mm  Left Opening
1427-047L-316R-25  Square 7mm  Right Opening

SUS Compression Latch 1427 Series, Large Version,Adjustable Grip Range 38.9-54.6mm Product Data Sheet

Part Number Head Style Opening Direction
1427-015L-316L-35  Double Bit 5mm  Left Opening
1427-015L-316R-35  Double Bit 5mm  Right Opening
1427-038L-316L-35  Triangular 8mm  Left Opening
1427-038L-316R-35  Triangular 8mm  Right Opening
1427-047L-316L-35  Square 7mm  Left Opening
1427-047L-316R-35  Square 7mm  Right Opening
