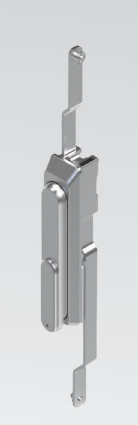

1120 R
1120 R

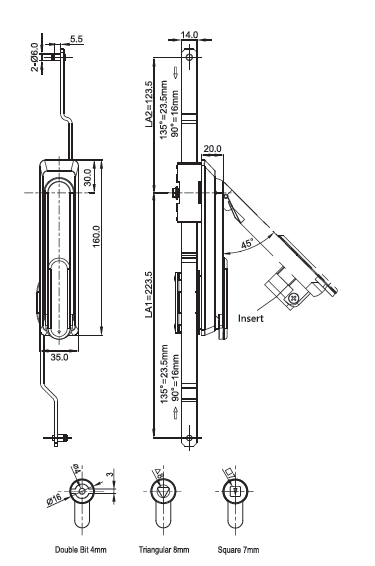

1120 R DRG
1120 R
1120 R
1120 R DRG

SUS Rod Control Swinghandle 1120 Rod Control Type Series

SKU:

KEY FEATURES
  • Handle Operation, Convenient And Quick
  • Keyed Access, Anti-Theft
  • Left-Right Interchangeable, Convenient Replacement
  • Button Pops Open For Easy Operation
  • Padlockable On Request
  • Euro Profile Cylinder
  • Multiple-Points Locking
MATERIAL
  • Housing,Handle:Stainless Steel 304/Stainless Steel 316
  • Rod Control:Stainless Steel 304

SUS Rod Control Swinghandle 1120 Two Point Rod Control Series Product Data Sheet

Part Number Insert Type With/Without Dust Cap
1120-2P01-C  HS8 Profile Cylinder  With
1120-2P01-NC  HS8 Profile Cylinder  Without
1120-2P02-C  Alike YK333 Profile Round Cylinder  With
1120-2P02-NC  Alike YK333 Profile Round Cylinder  Without
1120-2P03-C  Double Bit 4mm  With
1120-2P03-NC  Double Bit 4mm  Without
1120-2P04-C  Square 7mm  With
1120-2P04-NC  Square 7mm  Without
Part Number Insert Type With/Without Dust Cap
1120-3P01-C  HS8 Profile Cylinder  With
1120-3P01-NC  HS8 Profile Cylinder  Without
1120-3P02-C  Alike YK333 Profile Round Cylinder  With
1120-3P02-NC  Alike YK333 Profile Round Cylinder  Without
1120-3P03-C  Double Bit 4mm  With
1120-3P03-NC  Double Bit 4mm  Without
1120-3P04-C  Square 7mm  With
1120-3P04-NC  Square 7mm  Without
