Lock

Lock

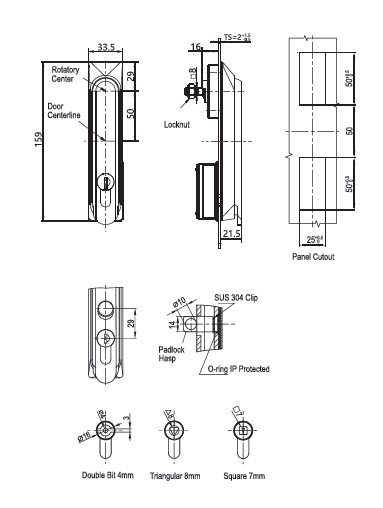

1101 CA, TYPE DRG

1101 CA, TYPE DRG

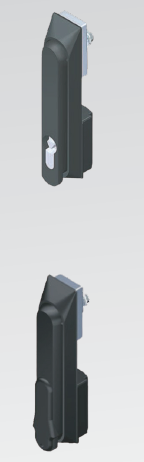

Swinghandle 1101 Cam Type Series

SKU:

KEY FEATURES

Sealed Against Water And Dust
Keyed Access, Anti-Theft
Left-Right Interchangeable, Convenient Replacement
Various Keys On Request
Padlockable On Request
Handle Operation, Convenient And Quick
Euro Profile Cylinder
Multiple-Points Locking

MATERIAL

Housing:PA6GF30
Handle:PA6GF30/PA66

Swinghandle 1101 Cam Type Series Round Cylinder Product Data Sheet

Part Number	Insert Type	With/Without Dust Cap
1101-1001-C	YK333 Cylinder	With
1101-1001-NC	YK333 Cylinder	Without

Swinghandle 1101 Cam Type Series Euro Cylinder Product Data Sheet

Part Number	Insert Type	With/Without Dust Cap
1101-1P01-C	YK333 Cylinder	With
1101-1P01-NC	YK333 Cylinder	Without
1101-1P02-C	Double Bit 4mm	With
1101-1P02-NC	Double Bit 4mm	Without
1101-1P03-C	Square 7mm	With
1101-1P03-NC	Square 7mm	Without
1101-1P04-C	Triangular 8mm	With
1101-1P04-NC	Triangular 8mm	Without
