Swinghandle 1102 Cam Type Series

Lock

Lock

1102 C
1102 CA,

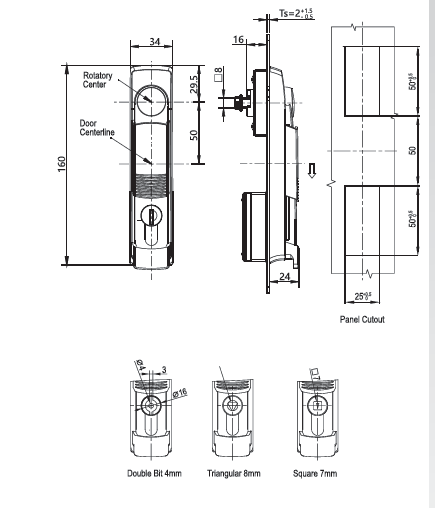

1102 CAM DRG
1102 C
1102 CA,
1102 CAM DRG

Swinghandle 1102 Cam Type Series

SKU:

KEY FEATURES
  • Sealed Against Water And Dust
  • Keyed Access, Anti-Theft
  • Left-Right Interchangeable, Convenient Replacement
  • Various Keys On Request
  • Padlockable On Request
  • Handle Operation, Convenient And Quick
  • Euro Profile Cylinder
  • Multiple-Points Locking
MATERIAL
  • Housing:PA6GF30
  • Handle:Zinc Die/PA6GF30/PA6GF15

Swinghandle 1102 Cam Series Round Cylinder Product Data Sheet

Part Number Material Insert type With/Without Dust Cap
1101-1002-NC  PA6 Housing, Zinc Die Handle  YK333 Cylinder  Without
1102-1001-C  PA6 Housing  YK333 Cylinder  With

Swinghandle 1102 Cam Series Euro Cylinder Product Data Sheet

Part Number Material Insert Type With/Without Dust Cap
1102-1P01-C  PA6 Housing  Alike YK333 Profile Round Cylinder  With
1102-1P01-NC  PA6 Housing, Zinc Die Handle  Alike YK333 Profile Round Cylinder  Without
1102-1P02-C  PA6 Housing  Double Bit 4mm  With
1102-1P02-NC  PA6 Housing, Zinc Die Handle  Double Bit 4mm  Without
1102-1P03-C  PA6 Housing  Square 7mm  With
1102-1P03-NC  PA6 Housing, Zinc Die Handle  Square 7mm  Without
1102-1P04-C  PA6 Housing  Triangular 8mm  With
1102-1P04-NC  PA6 Housing  Triangular 8mm  Without
