Vibration Resistant Compact Quarter Turn Lock 1426 Series, Fixed Grip Range

Lock

SKU:

KEY FEATURES

MATERIAL

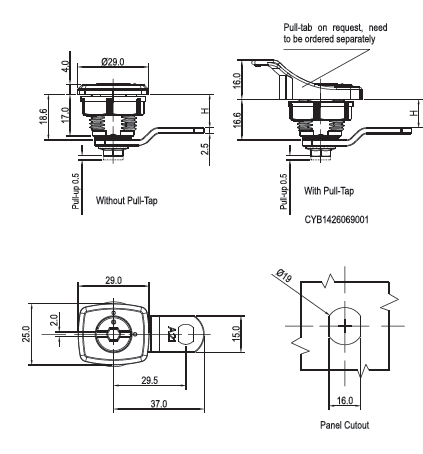

Part Number	Shaft Style	Insert Type	Cam Grip range H without Pull Tab	Cam Grip range H with pull tab
1426-265-S21	Short Shaft	Hex Female 4mm with Slot	Pawl Forward : 13.6 ; Pawl Reversed : 23.6	Pawl Forward : 11.6 ; Pawl Reversed : 21.6
1426-265-S22	Short Shaft	Hex Female 4mm with Slot	Pawl Forward : 8.6 ; Pawl Reversed : 28.6	Pawl Forward : 6.6 ; Pawl Reversed : 26.6
1426-265-S23	Short Shaft	Hex Female 4mm with Slot	Pawl Forward : 3.6 ; Pawl Reversed : 33.6	Pawl Forward : 1.6 ; Pawl Reversed : 31.6
1426-265-S24	Short Shaft	Hex Female 4mm with Slot	18.6	16.6
