Quarter Turn Lock 1420 Series

Lock

Lock

1420
1420
1420 DRG
1420
1420

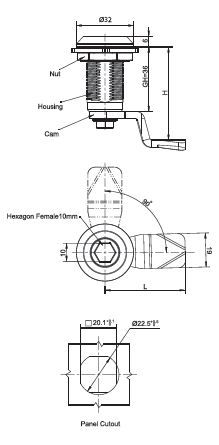

1420 DRG

Quarter Turn Lock 1420 Series

SKU:

KEY FEATURES
  • Sealed Against Water And Dust
  • Quick Installation
  • Various Materials On Request
MATERIAL
  • Housing:Zinc Die/PA6/Stainless Steel 316
  • Housing,Cylinder:Zinc Die/Stainless Steel 316

Quarter Turn Lock 1420 Series With Housing GH=18mm Product Data Sheet

Part Number Insert Type Material Surface finish
1420-18013-20  Double Bit 3mm  Zinc Die  Black Textured Powder Coated
1420-18013-20P  Double Bit 3mm  PA6 Housing, Zinc Die Insert  /
1420-18013-30  Double Bit 3mm  Zinc Die  Bright Chrome Plated
1420-18013-316  Double Bit 3mm  SUS 316  /
1420-18014-20  Double Bit 4mm  Zinc Die  Black Textured Powder Coated
1420-18014-20P  Double Bit 4mm  PA6 Housing, Zinc Die Insert  /
1420-18014-30  Double Bit 4mm  Zinc Die  Bright Chrome Plated
1420-18014-316  Double Bit 4mm  SUS 316  /
1420-18015-20  Double Bit 5mm  Zinc Die  Black Textured Powder Coated
1420-18015-20P  Double Bit 5mm  PA6 Housing, Zinc Die Insert  /
1420-18015-30  Double Bit 5mm  Zinc Die  Bright Chrome Plated
1420-18015-316  Double Bit 5mm  SUS 316  /
1420-18024-20  Slot 2X4mm  Zinc Die  Black Textured Powder Coated
1420-18024-20P  Slot 2X4mm  PA6 Housing, Zinc Die Insert  /
1420-18024-30  Slot 2X4mm  Zinc Die  Bright Chrome Plated
1420-18024-316  Slot 2X4mm  SUS 316  /
1420-18037-20  Triangular 7mm  Zinc Die  Black Textured Powder Coated
1420-18037-20P  Triangular 7mm  PA6 Housing, Zinc Die Insert  /
1420-18037-30  Triangular 7mm  Zinc Die  Bright Chrome Plated
1420-18037-316  Triangular 7mm  SUS 316  /
1420-18038-20  Triangular 8mm  Zinc Die  Black Textured Powder Coated
1420-18038-20P  Triangular 8mm  PA6 Housing, Zinc Die Insert  /
1420-18038-30  Triangular 8mm  Zinc Die  Bright Chrome Plated
1420-18038-316  Triangular 8mm  SUS 316  /
1420-18047-20  Square 7mm  Zinc Die  Black Textured Powder Coated
1420-18047-20P  Square 7mm  PA6 Housing, Zinc Die Insert  /
1420-18047-30  Square 7mm  Zinc Die  Bright Chrome Plated
1420-18047-316  Square 7mm  SUS 316  /
1420-18048-20  Square 8mm  Zinc Die  Black Textured Powder Coated
1420-18048-20P  Square 8mm  PA6 Housing, Zinc Die Insert  /
1420-18048-30  Square 8mm  Zinc Die  Bright Chrome Plated
1420-18048-316  Square 8mm  SUS 316  /
1420-18105-20  Triangular 10mm With M5 Screw Hole  Zinc Die  Black Textured Powder Coated
1420-18105-20P  Triangular 10mm With M5 Screw Hole  PA6 Housing, Zinc Die Insert  /
1420-18105-30  Triangular 10mm With M5 Screw Hole  Zinc Die  Bright Chrome Plated
1420-18105-316  Triangular 10mm With M5 Screw Hole  SUS 316  /
1420-18124-20  Slot 2X4mm Coin Proof  Zinc Die  Black Textured Powder Coated
1420-18124-20P  Slot 2X4mm Coin Proof  PA6 Housing, Zinc Die Insert  /
1420-18124-30  Slot 2X4mm Coin Proof  Zinc Die  Bright Chrome Plated
1420-18124-316  Slot 2X4mm Coin Proof  SUS 316  /
1420-18147-20  Square 7mm With Slot  Zinc Die  Black Textured Powder Coated
1420-18147-20P  Square 7mm With Slot  PA6 Housing, Zinc Die Insert  /
1420-18147-30  Square 7mm With Slot  Zinc Die  Bright Chrome Plated
1420-180147-316  Square 7mm With Slot  SUS 316  /
1420-18148-20  Square 8mm With Slot  Zinc Die  Black Textured Powder Coated
1420-18148-20P  Square 8mm With Slot  PA6 Housing, Zinc Die Insert  /
1420-18148-30  Square 8mm With Slot  Zinc Die  Bright Chrome Plated
1420-18148-316  Square 8mm With Slot  SUS 316  /
1420-18168-20  Hexagon Female 8mm  Zinc Die  Black Textured Powder Coated
1420-18168-20P  Hexagon Female 8mm  PA6 Housing, Zinc Die Insert  /
1420-18168-30  Hexagon Female 8mm  Zinc Die  Bright Chrome Plated
1420-18168-316  Hexagon Female 8mm  SUS 316  /
1420-18169-20  Hexagon Female 9mm  Zinc Die  Black Textured Powder Coated
1420-18169-20P  Hexagon Female 9mm  PA6 Housing, Zinc Die Insert  /
1420-18169-30  Hexagon Female 9mm  Zinc Die  Bright Chrome Plated
1420-18169-316  Hexagon Female 9mm  SUS 316  /
1420-18248-20  Female Square 8mm  Zinc Die  Black Textured Powder Coated
1420-18248-20P  Female Square 8mm  PA6 Housing, Zinc Die Insert  /
1420-18248-30  Female Square 8mm  Zinc Die  Bright Chrome Plated
1420-18248-316  Female Square 8mm  SUS 316  /
1420-18268-20  Hexagon Female 8mm With 3mm Pin  Zinc Die  Black Textured Powder Coated
1420-18268-20P  Hexagon Female 8mm With 3mm Pin  PA6 Housing, Zinc Die Insert  /
1420-18268-30  Hexagon Female 8mm With 3mm Pin  Zinc Die  Bright Chrome Plated
1420-18268-316  Hexagon Female 8mm With 3mm Pin  SUS 316  /
1420-18360-20  Hexagon Male 10mm  Zinc Die  Black Textured Powder Coated
1420-18360-20P  Hexagon Male 10mm  PA6 Housing, Zinc Die Insert  /
1420-18360-30  Hexagon Male 10mm  Zinc Die  Bright Chrome Plated
1420-18360-316  Hexagon Male 10mm  SUS 316  /

Quarter Turn Lock 1420 Series With Housing GH=30mm Product Data Sheet

Part Number Insert Type Material Surface finish
1420-30013-20  Double Bit 3mm  Zinc Die  Black Textured Powder Coated
1420-30013-20P  Double Bit 3mm  PA6 Housing, Zinc Die Insert  /
1420-30013-30  Double Bit 3mm  Zinc Die  Bright Chrome Plated
1420-30013-316  Double Bit 3mm  SUS 316  /
1420-30014-20  Double Bit 4mm  Zinc Die  Black Textured Powder Coated
1420-30014-20P  Double Bit 4mm  PA6 Housing, Zinc Die Insert  /
1420-30014-30  Double Bit 4mm  Zinc Die  Bright Chrome Plated
1420-30014-316  Double Bit 4mm  SUS 316  /
1420-30015-20  Double Bit 5mm  Zinc Die  Black Textured Powder Coated
1420-30015-20P  Double Bit 5mm  PA6 Housing, Zinc Die Insert  /
1420-30015-30  Double Bit 5mm  Zinc Die  Bright Chrome Plated
1420-30015-316  Double Bit 5mm  SUS 316  /
1420-30024-20  Slot 2X4mm  Zinc Die  Black Textured Powder Coated
1420-30024-20P  Slot 2X4mm  PA6 Housing, Zinc Die Insert  /
1420-30024-30  Slot 2X4mm  Zinc Die  Bright Chrome Plated
1420-30024-316  Slot 2X4mm  SUS 316  /
1420-30037-20  Triangular 7mm  Zinc Die  Black Textured Powder Coated
1420-30037-20P  Triangular 7mm  PA6 Housing, Zinc Die Insert  /
1420-30037-30  Triangular 7mm  Zinc Die  Bright Chrome Plated
1420-30037-316  Triangular 7mm  SUS 316  /
1420-30038-20  Triangular 8mm  Zinc Die  Black Textured Powder Coated
1420-30038-20P  Triangular 8mm  PA6 Housing, Zinc Die Insert  /
1420-30038-30  Triangular 8mm  Zinc Die  Bright Chrome Plated
1420-30038-316  Triangular 8mm  SUS 316  /
1420-30047-20  Square 7mm  Zinc Die  Black Textured Powder Coated
1420-30047-20P  Square 7mm  PA6 Housing, Zinc Die Insert  /
1420-30047-30  Square 7mm  Zinc Die  Bright Chrome Plated
1420-30047-316  Square 7mm  SUS 316  /
1420-30048-20  Square 8mm  Zinc Die  Black Textured Powder Coated
1420-30048-20P  Square 8mm  PA6 Housing, Zinc Die Insert  /
1420-30048-30  Square 8mm  Zinc Die  Bright Chrome Plated
1420-30048-316  Square 8mm  SUS 316  /
1420-30105-20  Triangular 10mm With M5 Screw Hole  Zinc Die  Black Textured Powder Coated
1420-30105-20P  Triangular 10mm With M5 Screw Hole  PA6 Housing, Zinc Die Insert  /
1420-30105-30  Triangular 10mm With M5 Screw Hole  Zinc Die  Bright Chrome Plated
1420-30105-316  Triangular 10mm With M5 Screw Hole  SUS 316  /
1420-30124-20  Slot 2X4mm Coin Proof  Zinc Die  Black Textured Powder Coated
1420-30124-20P  Slot 2X4mm Coin Proof  PA6 Housing, Zinc Die Insert  /
1420-30124-30  Slot 2X4mm Coin Proof  Zinc Die  Bright Chrome Plated
1420-30124-316  Slot 2X4mm Coin Proof  SUS 316  /
1420-30147-20  Square 7mm With Slot  Zinc Die  Black Textured Powder Coated
1420-30147-20P  Square 7mm With Slot  PA6 Housing, Zinc Die Insert  /
1420-30147-30  Square 7mm With Slot  Zinc Die  Bright Chrome Plated
1420-300147-316  Square 7mm With Slot  SUS 316  /
1420-30148-20  Square 8mm With Slot  Zinc Die  Black Textured Powder Coated
1420-30148-20P  Square 8mm With Slot  PA6 Housing, Zinc Die Insert  /
1420-30148-30  Square 8mm With Slot  Zinc Die  Bright Chrome Plated
1420-30148-316  Square 8mm With Slot  SUS 316  /
1420-30168-20  Hexagon Female 8mm  Zinc Die  Black Textured Powder Coated
1420-30168-20P  Hexagon Female 8mm  PA6 Housing, Zinc Die Insert  /
1420-30168-30  Hexagon Female 8mm  Zinc Die  Bright Chrome Plated
1420-30168-316  Hexagon Female 8mm  SUS 316  /
1420-30169-20  Hexagon Female 9mm  Zinc Die  Black Textured Powder Coated
1420-30169-20P  Hexagon Female 9mm  PA6 Housing, Zinc Die Insert  /
1420-30169-30  Hexagon Female 9mm  Zinc Die  Bright Chrome Plated
1420-30169-316  Hexagon Female 9mm  SUS 316  /
1420-30248-20  Female Square 8mm  Zinc Die  Black Textured Powder Coated
1420-30248-20P  Female Square 8mm  PA6 Housing, Zinc Die Insert  /
1420-30248-30  Female Square 8mm  Zinc Die  Bright Chrome Plated
1420-30248-316  Female Square 8mm  SUS 316  /
1420-30268-20  Hexagon Female 8mm With 3mm Pin  Zinc Die  Black Textured Powder Coated
1420-30268-20P  Hexagon Female 8mm With 3mm Pin  PA6 Housing, Zinc Die Insert  /
1420-30268-30  Hexagon Female 8mm With 3mm Pin  Zinc Die  Bright Chrome Plated
1420-30268-316  Hexagon Female 8mm With 3mm Pin  SUS 316  /
1420-30360-20  Hexagon Male 10mm  Zinc Die  Black Textured Powder Coated
1420-30360-20P  Hexagon Male 10mm  PA6 Housing, Zinc Die Insert  /
1420-30360-30  Hexagon Male 10mm  Zinc Die  Bright Chrome Plated
1420-30360-316  Hexagon Male 10mm  SUS 316  /

Quarter Turn Lock 1420 Series With Housing GH=36mm Product Data Sheet

Part Number Insert Type Material Surface finish
1420-36013-20  Double Bit 3mm  Zinc Die  Black Textured Powder Coated
1420-36013-20P  Double Bit 3mm  PA6 Housing, Zinc Die Insert  /
1420-36013-30  Double Bit 3mm  Zinc Die  Bright Chrome Plated
1420-36013-316  Double Bit 3mm  SUS 316  /
1420-36014-20  Double Bit 4mm  Zinc Die  Black Textured Powder Coated
1420-36014-20P  Double Bit 4mm  PA6 Housing, Zinc Die Insert  /
1420-36014-30  Double Bit 4mm  Zinc Die  Bright Chrome Plated
1420-36014-316  Double Bit 4mm  SUS 316  /
1420-36015-20  Double Bit 5mm  Zinc Die  Black Textured Powder Coated
1420-36015-20P  Double Bit 5mm  PA6 Housing, Zinc Die Insert  /
1420-36015-30  Double Bit 5mm  Zinc Die  Bright Chrome Plated
1420-36015-316  Double Bit 5mm  SUS 316  /
1420-36024-20  Slot 2X4mm  Zinc Die  Black Textured Powder Coated
1420-36024-20P  Slot 2X4mm  PA6 Housing, Zinc Die Insert  /
1420-36024-30  Slot 2X4mm  Zinc Die  Bright Chrome Plated
1420-36024-316  Slot 2X4mm  SUS 316  /
1420-36037-20  Triangular 7mm  Zinc Die  Black Textured Powder Coated
1420-36037-20P  Triangular 7mm  PA6 Housing, Zinc Die Insert  /
1420-36037-30  Triangular 7mm  Zinc Die  Bright Chrome Plated
1420-36037-316  Triangular 7mm  SUS 316  /
1420-36038-20  Triangular 8mm  Zinc Die  Black Textured Powder Coated
1420-36038-20P  Triangular 8mm  PA6 Housing, Zinc Die Insert  /
1420-36038-30  Triangular 8mm  Zinc Die  Bright Chrome Plated
1420-36038-316  Triangular 8mm  SUS 316  /
1420-36047-20  Square 7mm  Zinc Die  Black Textured Powder Coated
1420-36047-20P  Square 7mm  PA6 Housing, Zinc Die Insert  /
1420-36047-30  Square 7mm  Zinc Die  Bright Chrome Plated
1420-36047-316  Square 7mm  SUS 316  /
1420-36048-20  Square 8mm  Zinc Die  Black Textured Powder Coated
1420-36048-20P  Square 8mm  PA6 Housing, Zinc Die Insert  /
1420-36048-30  Square 8mm  Zinc Die  Bright Chrome Plated
1420-36048-316  Square 8mm  SUS 316  /
1420-36105-20  Triangular 10mm With M5 Screw Hole  Zinc Die  Black Textured Powder Coated
1420-36105-20P  Triangular 10mm With M5 Screw Hole  PA6 Housing, Zinc Die Insert  /
1420-36105-30  Triangular 10mm With M5 Screw Hole  Zinc Die  Bright Chrome Plated
1420-36105-316  Triangular 10mm With M5 Screw Hole  SUS 316  /
1420-36124-20  Slot 2X4mm Coin Proof  Zinc Die  Black Textured Powder Coated
1420-36124-20P  Slot 2X4mm Coin Proof  PA6 Housing, Zinc Die Insert  /
1420-36124-30  Slot 2X4mm Coin Proof  Zinc Die  Bright Chrome Plated
1420-36124-316  Slot 2X4mm Coin Proof  SUS 316  /
1420-36147-20  Square 7mm With Slot  Zinc Die  Black Textured Powder Coated
1420-36147-20P  Square 7mm With Slot  PA6 Housing, Zinc Die Insert  /
1420-36147-30  Square 7mm With Slot  Zinc Die  Bright Chrome Plated
1420-360147-316  Square 7mm With Slot  SUS 316  /
1420-36148-20  Square 8mm With Slot  Zinc Die  Black Textured Powder Coated
1420-36148-20P  Square 8mm With Slot  PA6 Housing, Zinc Die Insert  /
1420-36148-30  Square 8mm With Slot  Zinc Die  Bright Chrome Plated
1420-36148-316  Square 8mm With Slot  SUS 316  /
1420-36168-20  Hexagon Female 8mm  Zinc Die  Black Textured Powder Coated
1420-36168-20P  Hexagon Female 8mm  PA6 Housing, Zinc Die Insert  /
1420-36168-30  Hexagon Female 8mm  Zinc Die  Bright Chrome Plated
1420-36168-316  Hexagon Female 8mm  SUS 316  /
1420-36169-20  Hexagon Female 9mm  Zinc Die  Black Textured Powder Coated
1420-36169-20P  Hexagon Female 9mm  PA6 Housing, Zinc Die Insert  /
1420-36169-30  Hexagon Female 9mm  Zinc Die  Bright Chrome Plated
1420-36169-316  Hexagon Female 9mm  SUS 316  /
1420-36248-20  Hexagon Female 8mm With 3mm Pin  Zinc Die  Black Textured Powder Coated
1420-36248-20P  Hexagon Female 8mm With 3mm Pin  PA6 Housing, Zinc Die Insert  /
1420-36248-30  Hexagon Female 8mm With 3mm Pin  Zinc Die  Bright Chrome Plated
1420-36248-316  Hexagon Female 8mm With 3mm Pin  SUS 316  /
1420-36268-20  Hexagon Female 8mm With 3mm Pin  Zinc Die  Black Textured Powder Coated
1420-36268-20P  Hexagon Female 8mm With 3mm Pin  PA6 Housing, Zinc Die Insert  /
1420-36268-30  Hexagon Female 8mm With 3mm Pin  Zinc Die  Bright Chrome Plated
1420-36268-316  Hexagon Female 8mm With 3mm Pin  SUS 316  /
1420-36360-20  Hexagon Male 10mm  Zinc Die  Black Textured Powder Coated
1420-36360-20P  Hexagon Male 10mm  PA6 Housing, Zinc Die Insert  /
1420-36360-30  Hexagon Male 10mm  Zinc Die  Bright Chrome Plated
1420-36360-316  Hexagon Male 10mm  SUS 316  /
1420-360147-316  Square 7mm With Slot  SUS 316  /

Quarter Turn Lock 1420 Series With Housing GH=40mm Product Data Sheet

Part Number Insert Type Material Surface finish
1420-40013-20  Double Bit 3mm  Zinc Die  Black Textured Powder Coated
1420-40013-20P  Double Bit 3mm  PA6 Housing, Zinc Die Insert  /
1420-40013-30  Double Bit 3mm  Zinc Die  Bright Chrome Plated
1420-40013-316  Double Bit 3mm  SUS 316  /
1420-40014-20  Double Bit 4mm  Zinc Die  Black Textured Powder Coated
1420-40014-20P  Double Bit 4mm  PA6 Housing, Zinc Die Insert  /
1420-40014-30  Double Bit 4mm  Zinc Die  Bright Chrome Plated
1420-40014-316  Double Bit 4mm  SUS 316  /
1420-40015-20  Double Bit 5mm  Zinc Die  Black Textured Powder Coated
1420-40015-20P  Double Bit 5mm  / /
1420-40015-30  Double Bit 5mm  Zinc Die  Bright Chrome Plated
1420-40015-316  Double Bit 5mm  SUS 316  /
1420-40024-20  Slot 2X4mm  Zinc Die  Black Textured Powder Coated
1420-40024-20P  Slot 2X4mm  PA6 Housing, Zinc Die Insert  /
1420-40024-30  Slot 2X4mm  Zinc Die  Bright Chrome Plated
1420-40024-316  Slot 2X4mm  SUS 316  /
1420-40037-20  Triangular 7mm  Zinc Die  Black Textured Powder Coated
1420-40037-20P  Triangular 7mm  PA6 Housing, Zinc Die Insert  /
1420-40037-30  Triangular 7mm  Zinc Die  Bright Chrome Plated
1420-40037-316  Triangular 7mm  SUS 316  /
1420-40038-20  Triangular 8mm  Zinc Die  Black Textured Powder Coated
1420-40038-20P  Triangular 8mm  PA6 Housing, Zinc Die Insert  /
1420-40038-30  Triangular 8mm  Zinc Die  Bright Chrome Plated
1420-40038-316  Triangular 8mm  SUS 316  /
1420-40047-20  Square 7mm  Zinc Die  Black Textured Powder Coated
1420-40047-20P  Square 7mm  PA6 Housing, Zinc Die Insert  /
1420-40047-30  Square 7mm  Zinc Die  Bright Chrome Plated
1420-40047-316  Square 7mm  SUS 316  /
1420-40048-20  Square 8mm  Zinc Die  Black Textured Powder Coated
1420-40048-20P  Square 8mm  PA6 Housing, Zinc Die Insert  /
1420-40048-30  Square 8mm  Zinc Die  Bright Chrome Plated
1420-40048-316  Square 8mm  SUS 316  /
1420-40105-20  Triangular 10mm With M5 Screw Hole  Zinc Die  Black Textured Powder Coated
1420-40105-20P  Triangular 10mm With M5 Screw Hole  PA6 Housing, Zinc Die Insert  /
1420-40105-30  Triangular 10mm With M5 Screw Hole  Zinc Die  Bright Chrome Plated
1420-40105-316  Triangular 10mm With M5 Screw Hole  SUS 316  /
1420-40124-20  Slot 2X4mm Coin Proof  Zinc Die  Black Textured Powder Coated
1420-40124-20P  Slot 2X4mm Coin Proof  PA6 Housing, Zinc Die Insert  /
1420-40124-30  Slot 2X4mm Coin Proof  Zinc Die  Bright Chrome Plated
1420-40124-316  Slot 2X4mm Coin Proof  SUS 316  /
1420-40147-20  Square 7mm With Slot  Zinc Die  Black Textured Powder Coated
1420-40147-20P  Square 7mm With Slot  PA6 Housing, Zinc Die Insert  /
1420-40147-30  Square 7mm With Slot  Zinc Die  Bright Chrome Plated
1420-400147-316  Square 7mm With Slot  SUS 316  /
1420-40148-20  Square 8mm With Slot  Zinc Die  Black Textured Powder Coated
1420-40148-20P  Square 8mm With Slot  PA6 Housing, Zinc Die Insert  /
1420-40148-30  Square 8mm With Slot  Zinc Die  Bright Chrome Plated
1420-40148-316  Square 8mm With Slot  SUS 316  /
1420-40168-20  Hexagon Female 8mm  Zinc Die  Black Textured Powder Coated
1420-40168-20P  Hexagon Female 8mm  PA6 Housing, Zinc Die Insert  /
1420-40168-30  Hexagon Female 8mm  Zinc Die  Bright Chrome Plated
1420-40168-316  Hexagon Female 8mm  SUS 316  /
1420-40169-20  Hexagon Female 9mm  Zinc Die  Black Textured Powder Coated
1420-40169-20P  Hexagon Female 9mm  PA6 Housing, Zinc Die Insert  /
1420-40169-30  Hexagon Female 9mm  Zinc Die  Bright Chrome Plated
1420-40169-316  Hexagon Female 9mm  SUS 316  /
1420-40248-20  Female Square 8mm  Zinc Die  Black Textured Powder Coated
1420-40248-20P  Female Square 8mm  PA6 Housing, Zinc Die Insert  /
1420-40248-30  Female Square 8mm  Zinc Die  Bright Chrome Plated
1420-40248-316  Female Square 8mm  SUS 316  /
1420-40268-20  Hexagon Female 8mm With 3mm Pin  Zinc Die  Black Textured Powder Coated
1420-40268-20P  Hexagon Female 8mm With 3mm Pin  PA6 Housing, Zinc Die Insert  /
1420-40268-30  Hexagon Female 8mm With 3mm Pin  Zinc Die  Bright Chrome Plated
1420-40268-316  Hexagon Female 8mm With 3mm Pin  SUS 316  /
1420-40360-20  Hexagon Male 10mm  Zinc Die  Black Textured Powder Coated
1420-40360-20P  Hexagon Male 10mm  PA6 Housing, Zinc Die Insert  /
1420-40360-30  Hexagon Male 10mm  Zinc Die  Bright Chrome Plated
1420-40360-316  Hexagon Male 10mm  SUS 316  /

Quarter Turn Lock 1420 Series With Housing GH=50mm Product Data Sheet

Part Number Insert Type Material Surface finish
1420-50013-20  Double Bit 3mm  Zinc Die  Black Textured Powder Coated
1420-50013-20P  Double Bit 3mm  PA6 Housing, Zinc Die Insert  /
1420-50013-30  Double Bit 3mm  Zinc Die  Bright Chrome Plated
1420-50013-316  Double Bit 3mm  SUS 316  /
1420-50014-20  Double Bit 4mm  Zinc Die  Black Textured Powder Coated
1420-50014-20P  Double Bit 4mm  PA6 Housing, Zinc Die Insert  /
1420-50014-30  Double Bit 4mm  Zinc Die  Bright Chrome Plated
1420-50014-316  Double Bit 4mm  SUS 316  /
1420-50015-20  Double Bit 5mm  Zinc Die  Black Textured Powder Coated
1420-50015-20P  Double Bit 5mm  PA6 Housing, Zinc Die Insert  /
1420-50015-30  Double Bit 5mm  Zinc Die  Bright Chrome Plated
1420-50015-316  Double Bit 5mm  SUS 316  /
1420-50024-20  Slot 2X4mm  Zinc Die  Black Textured Powder Coated
1420-50024-20P  Slot 2X4mm  PA6 Housing, Zinc Die Insert  /
1420-50024-30  Slot 2X4mm  Zinc Die  Bright Chrome Plated
1420-50024-316  Slot 2X4mm  SUS 316  /
1420-50037-20  Triangular 7mm  Zinc Die  Black Textured Powder Coated
1420-50037-20P  Triangular 7mm  PA6 Housing, Zinc Die Insert  /
1420-50037-30  Triangular 7mm  Zinc Die  Bright Chrome Plated
1420-50037-316  Triangular 7mm  SUS 316  /
1420-50038-20  Triangular 8mm  Zinc Die  Black Textured Powder Coated
1420-50038-20P  Triangular 8mm  PA6 Housing, Zinc Die Insert  /
1420-50038-30  Triangular 8mm  Zinc Die  Bright Chrome Plated
1420-50038-316  Triangular 8mm  SUS 316  /
1420-50047-20  Square 7mm  Zinc Die  Black Textured Powder Coated
1420-50047-20P  Square 7mm  PA6 Housing, Zinc Die Insert  /
1420-50047-30  Square 7mm  Zinc Die  Bright Chrome Plated
1420-50047-316  Square 7mm  SUS 316  /
1420-50048-20  Square 8mm  Zinc Die  Black Textured Powder Coated
1420-50048-20P  Square 8mm  PA6 Housing, Zinc Die Insert  /
1420-50048-30  Square 8mm  Zinc Die  Bright Chrome Plated
1420-50048-316  Square 8mm  SUS 316  /
1420-50105-20  Triangular 10mm With M5 Screw Hole  Zinc Die  Black Textured Powder Coated
1420-50105-20P  Triangular 10mm With M5 Screw Hole  PA6 Housing, Zinc Die Insert  /
1420-50105-30  Triangular 10mm With M5 Screw Hole  Zinc Die  Bright Chrome Plated
1420-50105-316  Triangular 10mm With M5 Screw Hole  SUS 316  /
1420-50124-20  Slot 2X4mm Coin Proof  Zinc Die  Black Textured Powder Coated
1420-50124-20P  Slot 2X4mm Coin Proof  PA6 Housing, Zinc Die Insert  /
1420-50124-30  Slot 2X4mm Coin Proof  Zinc Die  Bright Chrome Plated
1420-50124-316  Slot 2X4mm Coin Proof  SUS 316  /
1420-50147-20  Square 7mm With Slot  Zinc Die  Black Textured Powder Coated
1420-50147-20P  Square 7mm With Slot  PA6 Housing, Zinc Die Insert  /
1420-50147-30  Square 7mm With Slot  Zinc Die  Bright Chrome Plated
1420-500147-316  Square 7mm With Slot  SUS 316  /
1420-50148-20  Square 8mm With Slot  Zinc Die  Black Textured Powder Coated
1420-50148-20P  Square 8mm With Slot  PA6 Housing, Zinc Die Insert  /
1420-50148-30  Square 8mm With Slot  Zinc Die  Bright Chrome Plated
1420-50148-316  Square 8mm With Slot  SUS 316  /
1420-50168-20  Hexagon Female 8mm  Zinc Die  Black Textured Powder Coated
1420-50168-20P  Hexagon Female 8mm  PA6 Housing, Zinc Die Insert  /
1420-50168-30  Hexagon Female 8mm  Zinc Die  Bright Chrome Plated
1420-50168-316  Hexagon Female 8mm  SUS 316  /
1420-50169-20  Hexagon Female 9mm  Zinc Die  Black Textured Powder Coated
1420-50169-20P  Hexagon Female 9mm  PA6 Housing, Zinc Die Insert  /
1420-50169-30  Hexagon Female 9mm  Zinc Die  Bright Chrome Plated
1420-50169-316  Hexagon Female 9mm  SUS 316  /
1420-50248-20  Female Square 8mm  Zinc Die  Black Textured Powder Coated
1420-50248-20P  Female Square 8mm  PA6 Housing, Zinc Die Insert  /
1420-50248-30  Female Square 8mm  Zinc Die  Bright Chrome Plated
1420-50248-316  Female Square 8mm  SUS 316  /
1420-50268-20  Hexagon Female 8mm With 3mm Pin  Zinc Die  Black Textured Powder Coated
1420-50268-20P  Hexagon Female 8mm With 3mm Pin  PA6 Housing, Zinc Die Insert  /
1420-50268-30  Hexagon Female 8mm With 3mm Pin  Zinc Die  Bright Chrome Plated
1420-50268-316  Hexagon Female 8mm With 3mm Pin  SUS 316  /
1420-50360-20  Hexagon Male 10mm  Zinc Die  Black Textured Powder Coated
1420-50360-20P  Hexagon Male 10mm  PA6 Housing, Zinc Die Insert  /
1420-50360-30  Hexagon Male 10mm  Zinc Die  Bright Chrome Plated
1420-50360-316  Hexagon Male 10mm  SUS 316  /

Quarter Turn Lock 1420 Series With Housing GH=60mm Product Data Sheet

Part Number Insert Type Material Surface finish
1420-60013-20  Double Bit 3mm  Zinc Die  Black Textured Powder Coated
1420-60013-20P  Double Bit 3mm  PA6 Housing, Zinc Die Insert  /
1420-60013-30  Double Bit 3mm  Zinc Die  Bright Chrome Plated
1420-60013-316  Double Bit 3mm  SUS 316  /
1420-60014-20  Double Bit 4mm  Zinc Die  Black Textured Powder Coated
1420-60014-20P  Double Bit 4mm  PA6 Housing, Zinc Die Insert  /
1420-60014-30  Double Bit 4mm  Zinc Die  Bright Chrome Plated
1420-60014-316  Double Bit 4mm  SUS 316  /
1420-60015-20  Double Bit 5mm  Zinc Die  Black Textured Powder Coated
1420-60015-20P  Double Bit 5mm  PA6 Housing, Zinc Die Insert  /
1420-60015-30  Double Bit 5mm  Zinc Die  Bright Chrome Plated
1420-60015-316  Double Bit 5mm  SUS 316  /
1420-60024-20  Slot 2X4mm  Zinc Die  Black Textured Powder Coated
1420-60024-20P  Slot 2X4mm  PA6 Housing, Zinc Die Insert  /
1420-60024-30  Slot 2X4mm  Zinc Die  Bright Chrome Plated
1420-60024-316  Slot 2X4mm  SUS 316  /
1420-60037-20  Triangular 7mm  Zinc Die  Black Textured Powder Coated
1420-60037-20P  Triangular 7mm  PA6 Housing, Zinc Die Insert  /
1420-60037-30  Triangular 7mm  Zinc Die  Bright Chrome Plated
1420-60037-316  Triangular 7mm  SUS 316  /
1420-60038-20  Triangular 8mm  Zinc Die  Black Textured Powder Coated
1420-60038-20P  Triangular 8mm  PA6 Housing, Zinc Die Insert  /
1420-60038-30  Triangular 8mm  Zinc Die  Bright Chrome Plated
1420-60038-316  Triangular 8mm  SUS 316  /
1420-60047-20  Square 7mm  Zinc Die  Black Textured Powder Coated
1420-60047-20P  Square 7mm  PA6 Housing, Zinc Die Insert  /
1420-60047-30  Square 7mm  Zinc Die  Bright Chrome Plated
1420-60047-316  Square 7mm  SUS 316  /
1420-60048-20  Square 8mm  Zinc Die  Black Textured Powder Coated
1420-60048-20P  Square 8mm  PA6 Housing, Zinc Die Insert  /
1420-60048-30  Square 8mm  Zinc Die  Bright Chrome Plated
1420-60048-316  Square 8mm  SUS 316  /
1420-60105-20  Triangular 10mm With M5 Screw Hole  Zinc Die  Black Textured Powder Coated
1420-60105-20P  Triangular 10mm With M5 Screw Hole  PA6 Housing, Zinc Die Insert  /
1420-60105-30  Triangular 10mm With M5 Screw Hole  Zinc Die  Bright Chrome Plated
1420-60105-316  Triangular 10mm With M5 Screw Hole  SUS 316  /
1420-60124-20  Slot 2X4mm Coin Proof  Zinc Die  Black Textured Powder Coated
1420-60124-20P  Slot 2X4mm Coin Proof  PA6 Housing, Zinc Die Insert  /
1420-60124-30  Slot 2X4mm Coin Proof  Zinc Die  Bright Chrome Plated
1420-60124-316  Slot 2X4mm Coin Proof  SUS 316  /
1420-60147-20  Square 7mm With Slot  Zinc Die  Black Textured Powder Coated
1420-60147-20P  Square 7mm With Slot  PA6 Housing, Zinc Die Insert  /
1420-60147-30  Square 7mm With Slot  Zinc Die  Bright Chrome Plated
1420-60147-316  Square 7mm With Slot  SUS 316  /
1420-60148-20  Square 8mm With Slot  Zinc Die  Black Textured Powder Coated
1420-60148-20P  Square 8mm With Slot  PA6 Housing, Zinc Die Insert  /
1420-60148-30  Square 8mm With Slot  Zinc Die  Bright Chrome Plated
1420-60148-316  Square 8mm With Slot  SUS 316  /
1420-60168-20  Hexagon Female 8mm  Zinc Die  Black Textured Powder Coated
1420-60168-20P  Hexagon Female 8mm  PA6 Housing, Zinc Die Insert  /
1420-60168-30  Hexagon Female 8mm  Zinc Die  Bright Chrome Plated
1420-60168-316  Hexagon Female 8mm  SUS 316  /
1420-60169-20  Hexagon Female 9mm  Zinc Die  Black Textured Powder Coated
1420-60169-20P  Hexagon Female 9mm  PA6 Housing, Zinc Die Insert  /
1420-60169-30  Hexagon Female 9mm  Zinc Die  Bright Chrome Plated
1420-60169-316  Hexagon Female 9mm  SUS 316  /
1420-60248-20  Female Square 8mm  Zinc Die  Black Textured Powder Coated
1420-60248-20P  Female Square 8mm  PA6 Housing, Zinc Die Insert  /
1420-60248-30  Female Square 8mm  Zinc Die  Bright Chrome Plated
1420-60248-316  Female Square 8mm  SUS 316  /
1420-60268-20  Hexagon Female 8mm With 3mm Pin  Zinc Die  Black Textured Powder Coated
1420-60268-20P  Hexagon Female 8mm With 3mm Pin  PA6 Housing, Zinc Die Insert  /
1420-60268-30  Hexagon Female 8mm With 3mm Pin  Zinc Die  Bright Chrome Plated
1420-60268-316  Hexagon Female 8mm With 3mm Pin  SUS 316  /
1420-60360-20  Hexagon Male 10mm  Zinc Die  Black Textured Powder Coated
1420-60360-20P  Hexagon Male 10mm  PA6 Housing, Zinc Die Insert  /
1420-60360-30  Hexagon Male 10mm  Zinc Die  Bright Chrome Plated
1420-60360-316  Hexagon Male 10mm  SUS 316  /
