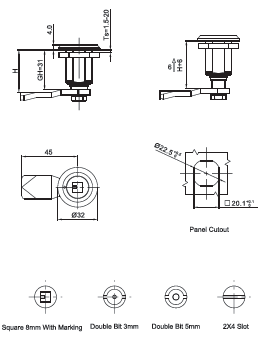

1438 A DRG
1438 B
1438 B DRG
1438 L F
1438 A
1438 A DRG
1438 B
1438 B DRG

SUS Compression Latch 1438 Series, Large Size Type, Fixed Grip Range

SKU:

KEY FEATURES
  • Tool Lock Insert, Easy To Open
  • Sealed Against Water And Dust
  • Keyed Access, Anti-Theft
  • Left-Right Interchangeable, Convenient Replacement
  • Compression Locking, For Enhanced Security
MATERIAL
  • Housing,Cylinder:Zinc Die/Stainless Steel 316

SUS Compression Latch 1438 Series, Large Size Type, Fixed Grip Range Product Data Sheet

Part Number Material Insert Type Installation Direction
1438-013-316  SUS 316  Double Bit 3mm  Right
1438-013-316L  SUS 316  Double Bit 3mm  Left
1438-015-316  SUS 316  Double Bit 5mm  Right
1438-015-316L  SUS 316  Double Bit 5mm  Left
1438-024-316  SUS 316  Slot 2X4mm  Right
1438-024-316L  SUS 316  Slot 2X4mm  Left
1438-048-316  SUS 316  Square 8mm With Arrow  Right
1438-048-316L  SUS 316  Square 8mm With Arrow  Left

SUS Compression Latch 1438 Series, Large Size Type, Fixed Grip Range, With Arrows And Red & Green Mark Product Data Sheet

Part Number Material Insert Type Installation Mode
1438-048S-316L  SUS 316  Square 8mm With Arrow  Left
1438-048S-316R  SUS 316  Square 8mm With Arrow  Right
